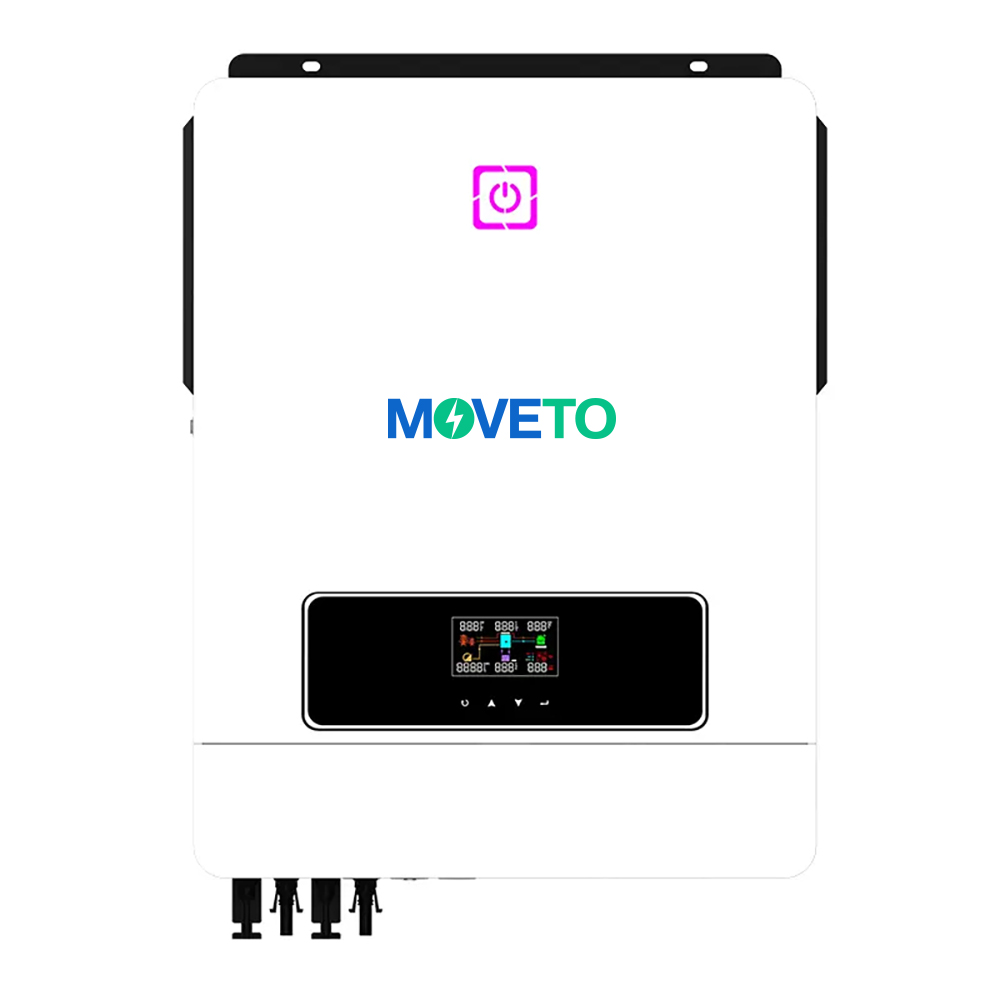

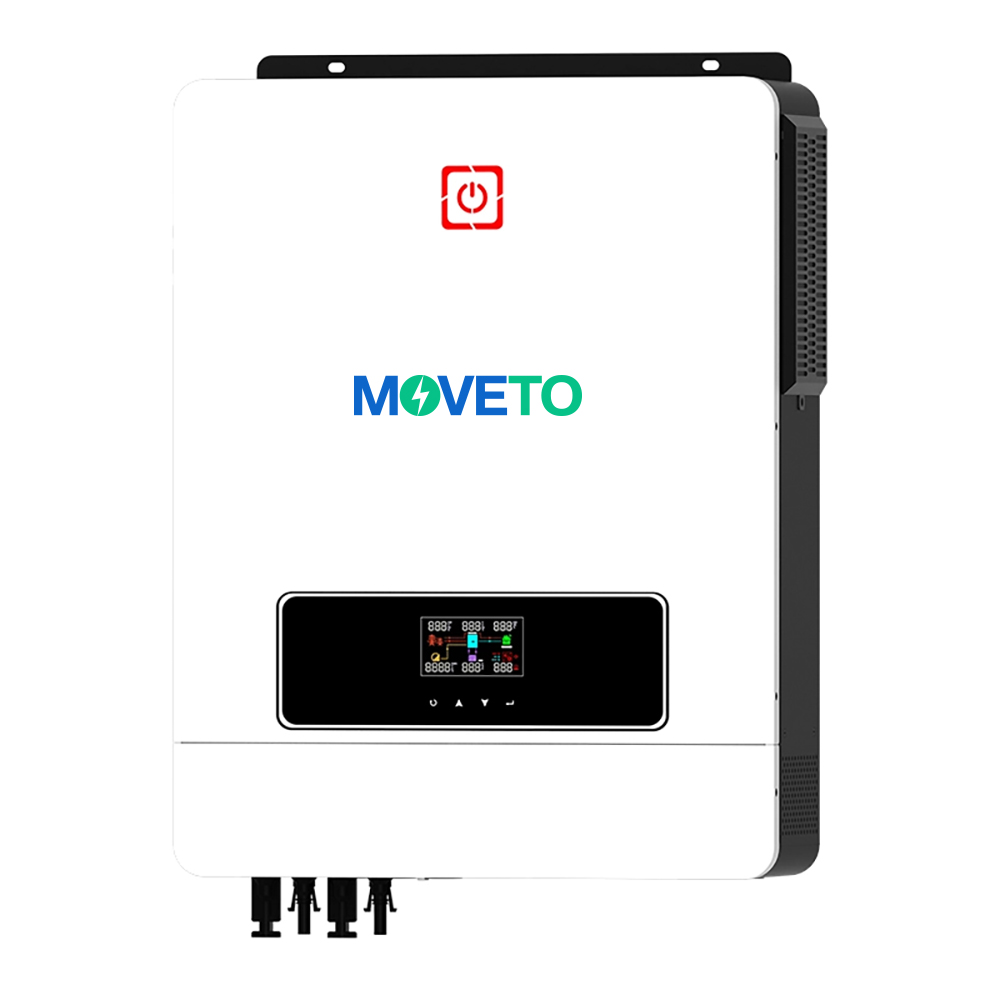

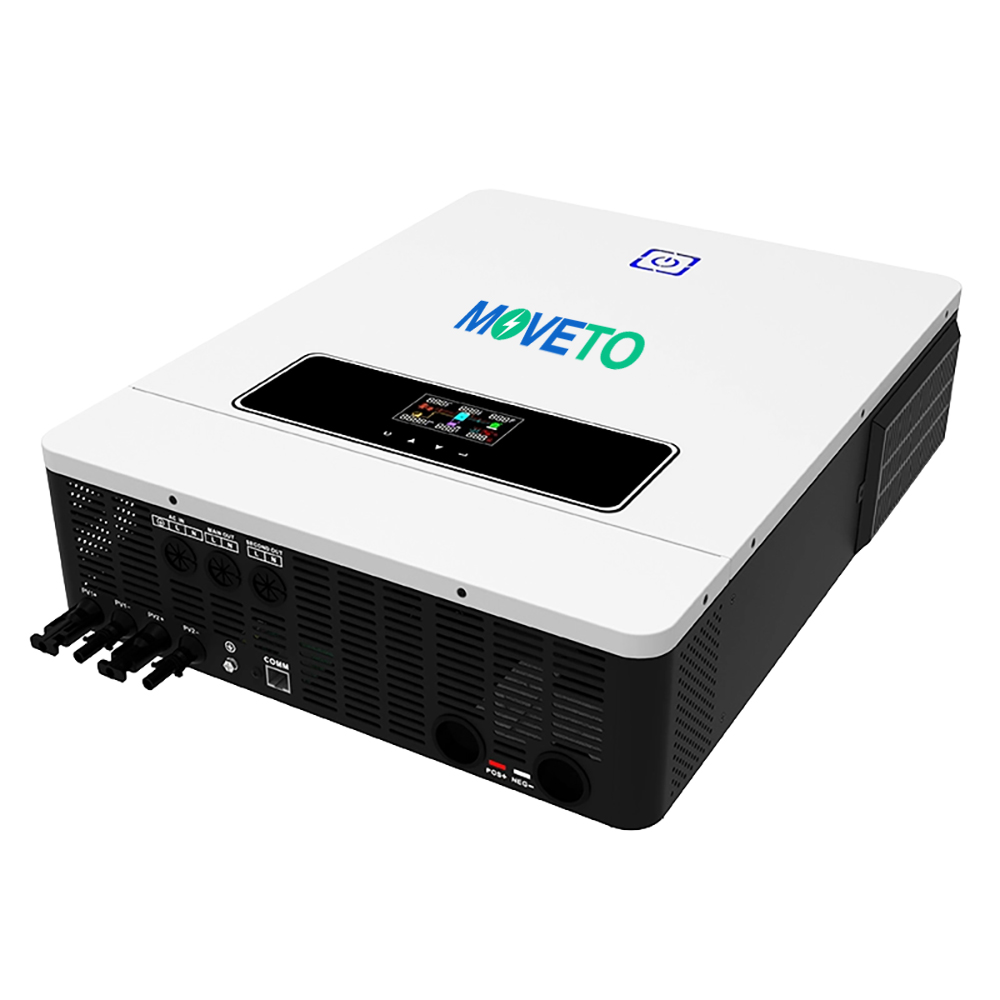

Description
FEATURES:
Pure sine wave solar inverter(on/of Grid).
High PV input voltage range(90 – 500VDC).
Output power factor 1.0.
Built-in anti-dust kit for harsh environment.
WIFI&GPRS available for IOS and Android.
Smart battery charge design to optimize battery life.
Inverter can run without battery.

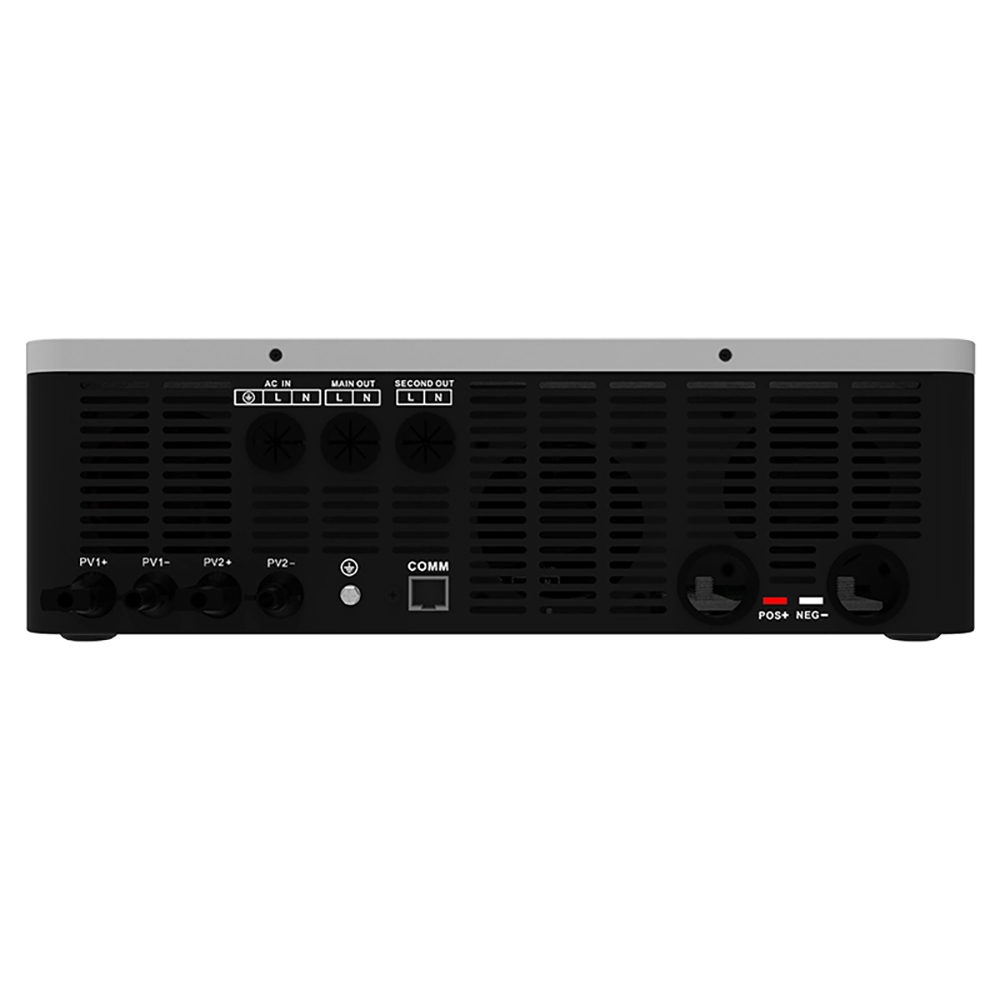

Dual output.
One-key restoration to factory settings .
Dual PV input.
Built-in Lithium battery automatic activation.
Touch button.
On Off Grid Work Mode.
Built-in 160A MPPT solar charger (for 8.2KW,10.2KW);140A(for 7.2KW)
Built Remove LCD Display and Key.
PRODUCT DATA SHEET:
|
MODEL
|
MAX-7200W
|
MAX-8200W
|
MAX-10200W
|
|
Phase
|
1-phase
|
||
|
Maximum PV Input Power
|
8200W
|
5400W+5400W
|
5400W+5400W
|
|
Rated Output Power
|
7200W/7200VA
|
8200W/8200VA
|
10200W/10200VA
|
|
Maximum Solar Charging Current
|
140A
|
160A
|
160A
|
|
GRID-TIE OPERATION
|
|||
|
PV INPUT(DC)
|
|||
|
Nominal DC Voltage/Maximum Current
|
360/500VDC
|
||
|
Stat-up Voltage/Initial Feeding Voltage
|
90VDC/120VDC
|
||
|
MPPT Voltage Range
|
90-450VDC
|
||
|
Maximum Input Current
|
1/23A
|
2/18A
|
2/18A
|
|
GRID OUTPUT(AC)
|
|||
|
Nominal Output Voltage
|
220/230/240VAC
|
||
|
Output Voltage Range
|
190-253VDC
|
||
|
Nominal Output Current
|
31.3A
|
35.6A
|
44.3A
|
|
Power Factor
|
>0.99
|
||
|
EFFICIENCY
|
|||
|
Maximum Conversion Efficiency(DC/AC)
|
98%
|
||
|
TWO LOAD OUTPUT POWER
|
|||
|
Full Load
|
7200W
|
8200W
|
10200W
|
|
Maxium MainLoad
|
7200W
|
8200W
|
10200W
|
|
Maxium Second Load(battery mode)
|
2400W
|
2733W
|
3400W
|
|
Maxium Load Cut Off Voltage
|
52VDC
|
52VDC
|
52VDC
|
|
Maxium Load Return Voltage
|
54VDC
|
54VDC
|
54VDC
|
|
OFF-GRID OPERATION
|
|||
|
AC INPUT
|
|||
|
AC Start-up Voltage/Auto Restart Voltage
|
120-140VAC/180VAC
|
||
|
Acceptable Input Voltage Range
|
90-280VAC or 170-280VAC
|
||
|
Frequency Range
|
49-51HZ
|
||
|
Maxium AC Input Current
|
40A
|
40A
|
50A
|
|
PV INPUT(DC)
|
|||
|
Nominal DC Voltage/Maximum DC Voltage
|
360/500VDC
|
||
|
MPPT Voltage Range
|
90-450VDC
|
||
|
Maximum Input Current
|
1/23A
|
2/18A
|
2/18A
|
|
BATTERY MODE OUTPUT(AC)
|
|||
|
Nominal Output Voltage
|
220/230/240VAC
|
||
|
Output Waveform
|
Pure sine wave
|
||
|
Efficiency(DC to AC)
|
94%
|
||
|
BATTERY & CHARGER
|
|||
|
Nominal DC Voltage
|
48V
|
||
|
Maximum Solar Charging Current
|
140A
|
160A
|
160A
|
|
Maximum AC Charging Current
|
120A
|
140A
|
140A
|
|
Maximum Charging Current
|
140A
|
160A
|
160A
|
|
HYBRID OPERATION
|
|||
|
PV INPUT(DC)
|
|||
|
Nominal DC Voltage/Maximum DC Voltage
|
360/500VDC
|
||
|
Stat-up Voltage/Initial Feeding Voltage
|
90VDC/120VDC
|
||
|
MPPT Voltage Range
|
90-450VDC
|
||
|
Maximum Input Current
|
1/23A
|
2/18A
|
2/18A
|
|
GRID OUTPUT(AC)
|
|||
|
Nominal Output Voltage
|
220/230/240VAC
|
||
|
Output Voltage Range
|
190-253VDC
|
||
|
Nominal Output Current
|
31.3A
|
35.6A
|
44.3A
|
|
AC INPUT
|
|||
|
AC Start-up Voltage/Auto Restart Voltage
|
120-140VAC/180VAC
|
||
|
Acceptable Input Voltage Range
|
90-280VAC or 170-280VAC
|
||
|
Maximum Input Current
|
40A
|
40A
|
50A
|
|
Maximum AC Charging Current
|
120A
|
140A
|
140A
|
|
GENERAL
|
|||
|
PHYSICAL
|
|||
|
Dimension,D*W*H(mm)
|
500*390*130
|
500*420*160
|
500*420*160
|
|
Carton Dimension,D*W*H(mm)
|
588*463*205
|
618*463*205
|
618*463*205
|
|
Net Weight(kgs)
|
13.6
|
14.6
|
15
|
|
Gross Weight(kgs)
|
14.9
|
16.1
|
16.5
|
|
INTERACE
|
|||
|
Communication Port
|
RS232/RS485/WIFI/GPRS/LITHIUM BATTERY
|
||
|
ENVIRONMENT
|
|||
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
||
|
Operationg Temperature
|
-10℃-50℃
|
||
|
STANDARD
|
|||
|
Compliance Safety
|
CE
|
||
